Zstandard(zstd)压缩

本文将详细介绍如何在 OpenResty Edge 中配置和使用 Zstandard(zstd)压缩功能。

配置层级概述

OpenResty Edge 提供了多个层级的 zstd 压缩配置选项,按照优先级从高到低排列如下:

  1. 页面规则配置:应用 > HTTP 应用 > 具体应用 > 页面规则 > 动作 > 启用网关 Zstandard/设置 Zstandard 类型
  2. 全局自定义动作配置(被 HTTP 应用引用):全局配置 > 全局自定义动作 > 动作 > 启用网关 Zstandard/设置 Zstandard 类型
  3. 应用设置配置:应用 > HTTP 应用 > 具体应用 > 设置 > Zstandard
  4. 全局改写规则配置:全局配置 > 全局改写规则 > 动作 > 启用网关 Zstandard/设置 Zstandard 类型
  5. 全局通用配置:全局配置 > 通用配置 > Zstandard 配置(默认启用)

注意:当多个层级同时配置时,高优先级的配置会覆盖低优先级的配置。

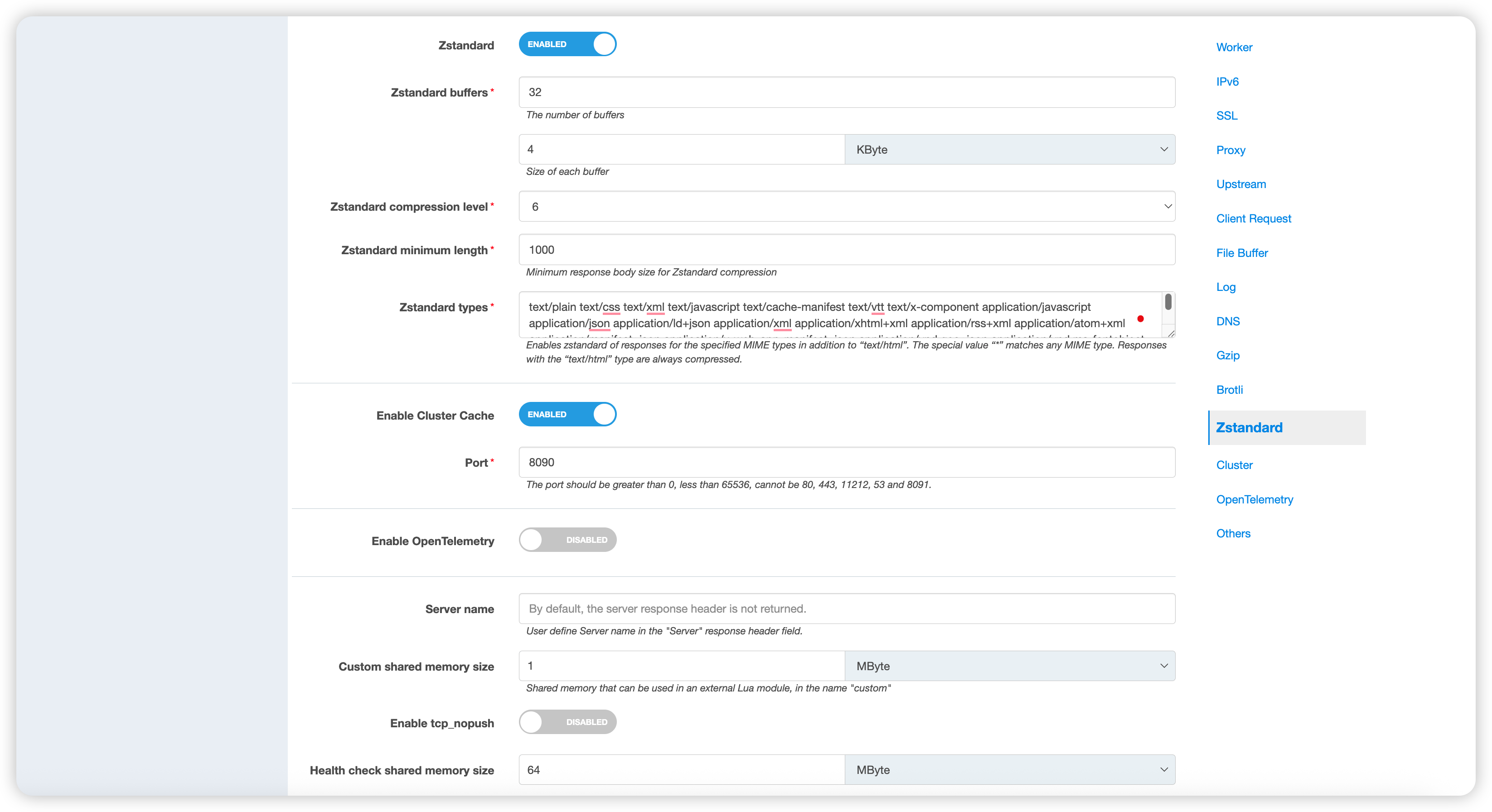

全局通用配置

全局通用配置是 zstd 压缩的基础配置,为整个系统提供默认的压缩参数。

配置参数说明

配置项默认值说明
Zstandard 开关开启全局启用或禁用 Zstandard 压缩功能
Zstandard 缓冲32 x 4KB压缩过程中使用的缓冲区大小,影响内存使用
Zstandard 压缩等级6压缩级别(1-22),数值越高压缩率越好但速度越慢
Zstandard 最小压缩长度1000 字节只有响应体大小超过此阈值才进行压缩
分块传输(Transfer-Encoding: chunked)时忽略此限制
Zstandard 压缩资源类型见下方列表指定需要进行 zstd 压缩的 MIME 类型

默认压缩类型

系统默认对以下 MIME 类型启用 zstd 压缩:

text/plain text/css text/xml text/javascript text/cache-manifest
text/vtt text/x-component application/javascript application/json
application/ld+json application/xml application/xhtml+xml
application/rss+xml application/atom+xml application/manifest+json
application/x-web-app-manifest+json application/vnd.geo+json
application/vnd.ms-fontobject application/x-font-ttf application/wasm
font/opentype image/svg+xml image/bmp

提示text/html 类型默认包含在压缩范围内,无需在此处重复配置。

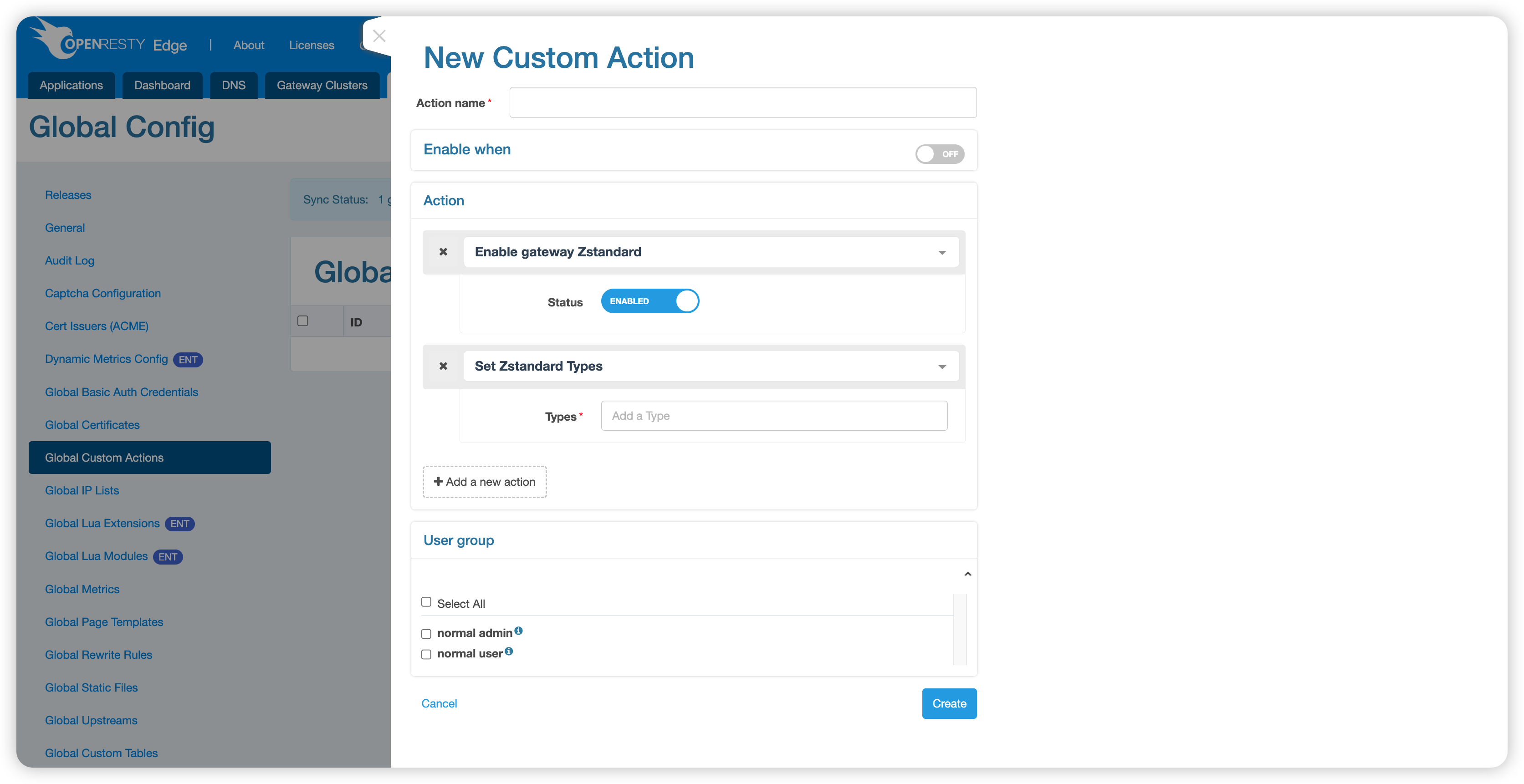

全局改写规则配置

通过全局改写规则可以为特定条件的请求配置 zstd 压缩。

可用动作

  • 启用网关 Zstandard:动态启用或禁用 Zstandard 压缩
  • 设置 Zstandard 压缩类型:自定义需要压缩的 MIME 类型

注意:此处设置的压缩类型默认不包含 text/html,如需压缩 HTML 内容,请手动添加。

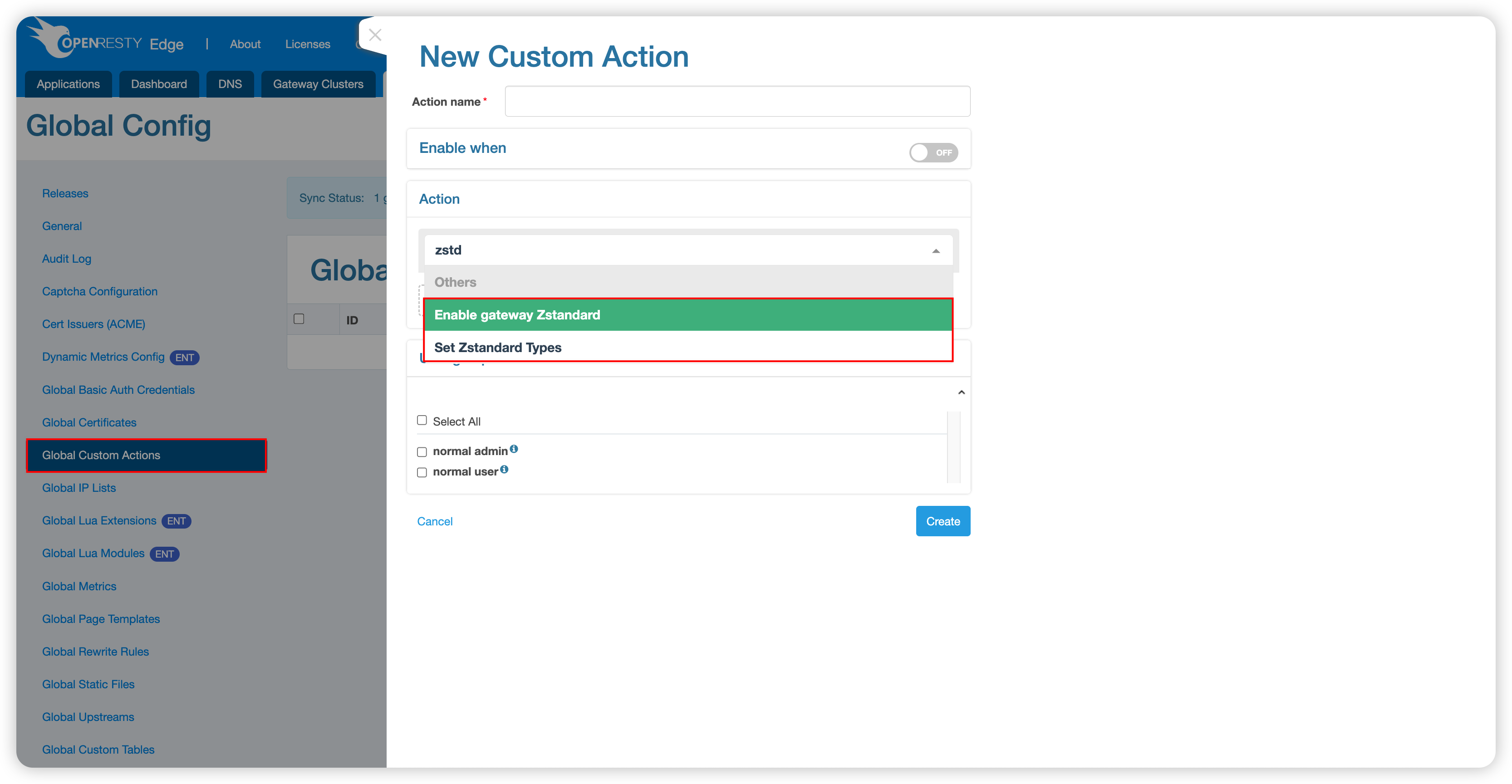

全局自定义动作配置

自定义动作提供了可复用的 zstd 压缩配置,可在多个应用中引用。

配置方式与全局改写规则相同,但具有更高的优先级。

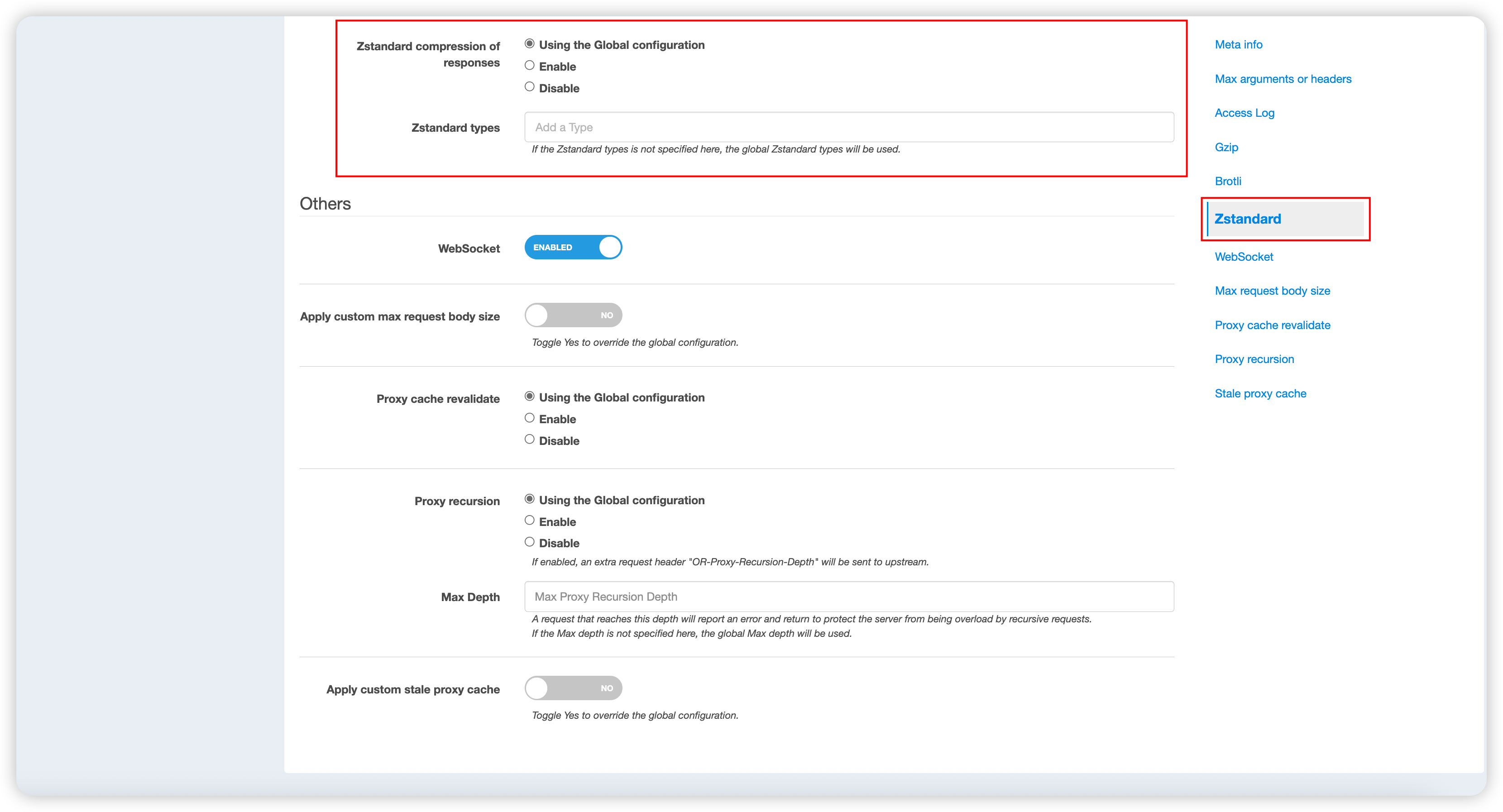

应用级别配置

在应用设置中可以为特定应用配置 zstd 压缩策略。

配置选项

  • 跟随全局:使用全局通用配置中的设置
  • 启用:为当前应用启用 zstd 压缩
  • 禁用:为当前应用禁用 zstd 压缩

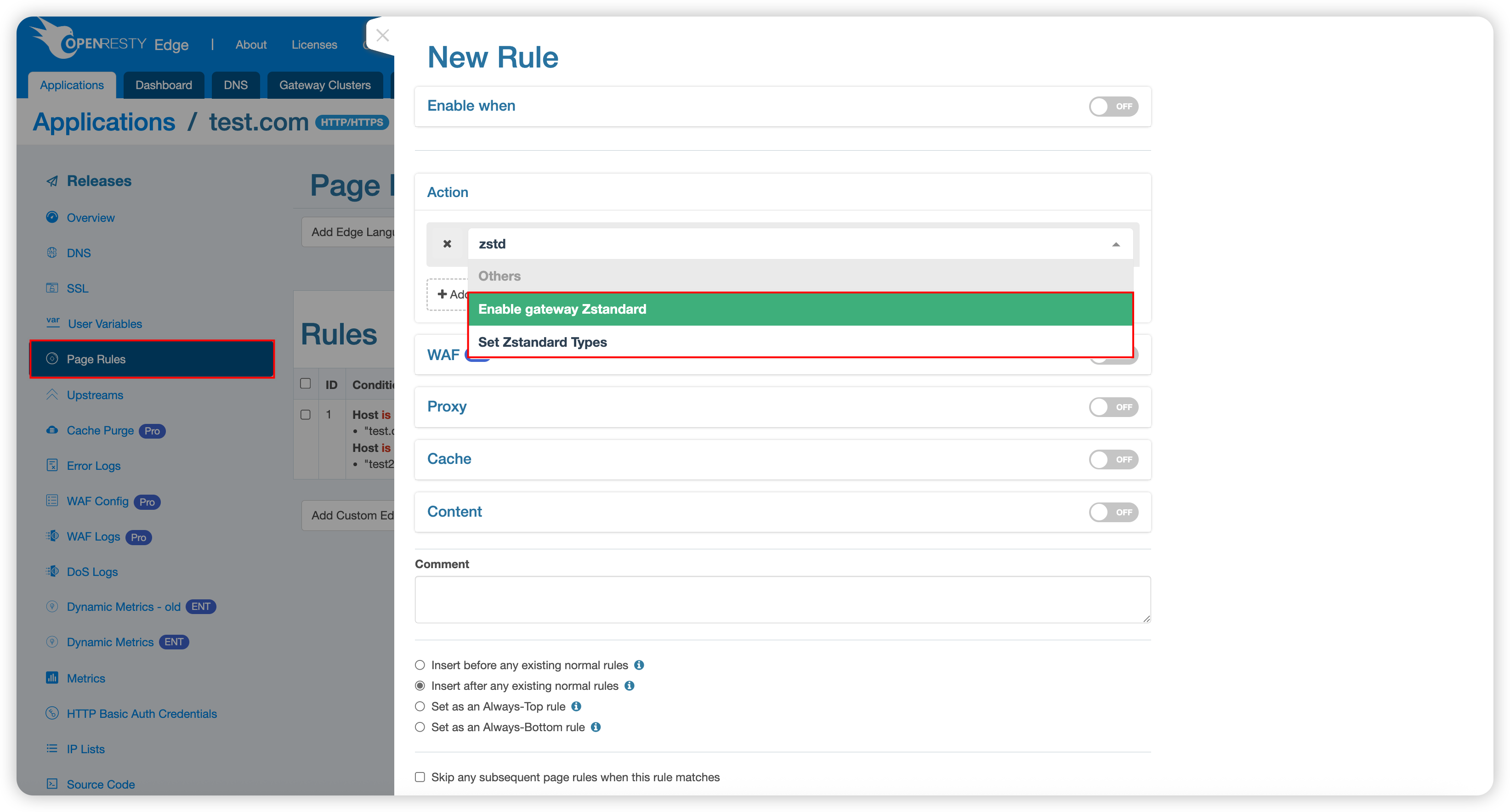

页面规则配置

页面规则提供最精细的 zstd 压缩控制,可以针对特定的 URL 路径或条件进行配置。

配置方式与全局改写规则相同,但具有最高的优先级。

实际应用示例

以下示例展示了 zstd 压缩的实际效果。

测试场景

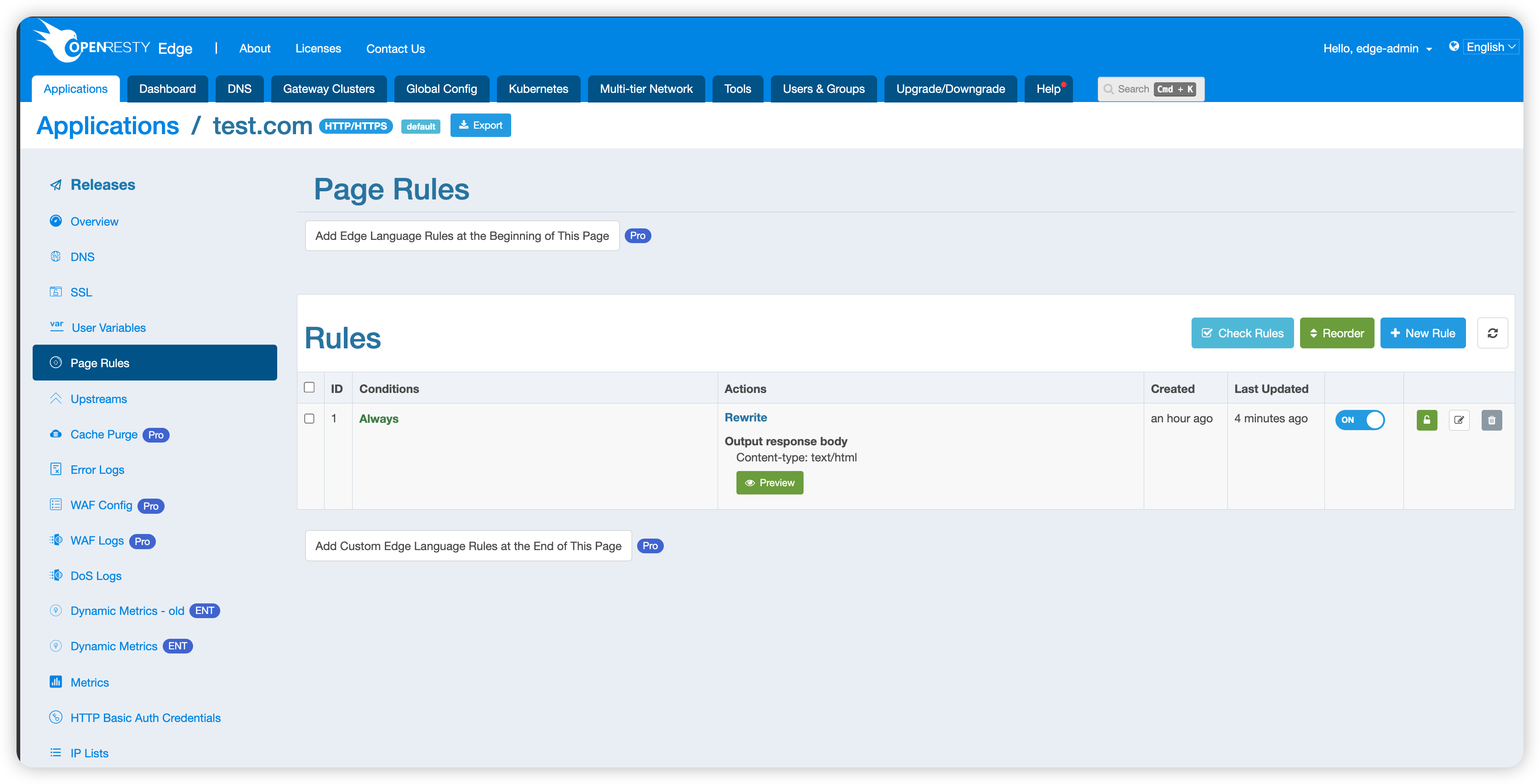

示例中配置了一条简单的页面规则,直接响应 “Hello World” 文本。由于全局通用配置默认启用了 zstd 压缩,因此无需额外配置。

压缩效果测试

启用 zstd 压缩的请求:

$ curl test.com/enable --resolve test.com:80:127.0.0.1 -H 'Accept-Encoding: zstd' -v
*   Trying 127.0.0.1:80...
* Connected to test.com (127.0.0.1) port 80 (#0)
> GET /enable HTTP/1.1
> Host: test.com
> User-Agent: curl/7.76.1
> Accept: */*
> Accept-Encoding: zstd
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Content-Type: text/html
< Transfer-Encoding: chunked
< Connection: keep-alive
< Req-ID: 0000008000046f7f9e280008
< Content-Encoding: zstd
<
Warning: Binary output can mess up your terminal. Use "--output -" to tell
Warning: curl to output it to your terminal anyway, or consider "--output
Warning: <FILE>" to save to a file.

响应头中包含 Content-Encoding: zstd,确认压缩已生效。

未启用 zstd 压缩的请求:

$ curl test.com/enable --resolve test.com:80:127.0.0.1 -v
*   Trying 127.0.0.1:80...
* Connected to test.com (127.0.0.1) port 80 (#0)
> GET /enable HTTP/1.1
> Host: test.com
> User-Agent: curl/7.76.1
> Accept: */*
>
* Mark bundle as not supporting multiuse
< HTTP/1.1 200 OK
< Date: Fri, 30 May 2025 08:42:51 GMT
< Content-Type: text/html
< Transfer-Encoding: chunked
< Connection: keep-alive
< Req-ID: 0000008000046f7fac58000b
<
Hello World

未包含 Accept-Encoding: zstd 请求头时,服务器返回未压缩的原始内容。

更多说明

当同时启用 Gzip、Brotli、zstd 压缩时,优先级是 zstd > Brotli > Gzip。
